DIN 6325 Dowel Pins Steel

Standard sheet DIN 6325 Print this page ISO Fundamental Tolerances

Product description

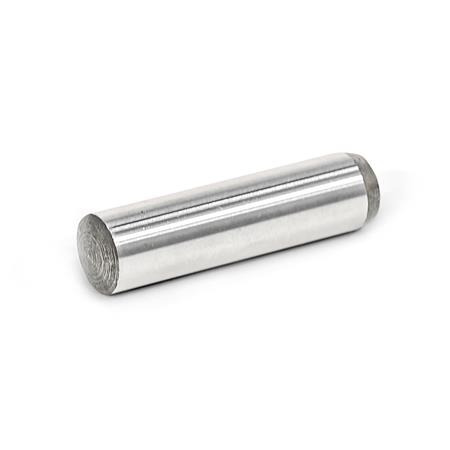

Dowel pins DIN 6325 connect, secure and position machine parts.

They are generally used in conjunction with through holes. The centering step facilitates press-fitting.

The dimensions do not conform to ISO 8734 but can partially replace these. In combination with a location hole H7, a transition fit can be achieved.

Specification

SteelST

Hardened (HRC 60 ±2)
Fit dimension d ground, plain finish

RoHS

On request

Stainless steel

DIN 6325 Dowel Pins, Steel sketch

Hide technical drawing

DIN 6325 Dowel Pins, Steel sketch

Article options / Table

Tolerance class

M6	ISO Fundamental Tolerance m6 (acc. to DIN ISO 286-2)

Show / Hide columns

d m6	l₁ js14																l₂	l₃	r	Packaging units

2	5	6	8	10	12	14	16	18	20	-	-	-	-	-	-	-	0,78	0,3	2	25
2,5	6	8	10	12	14	16	18	20	24	28	-	-	-	-	-	-	0,95	0,4	2,5	25
3	6	8	10	12	14	16	18	20	24	28	32	-	-	-	-	-	1,1	0,45	3	25
4	6	8	10	12	14	16	18	20	24	28	32	36	40	-	-	-	1,4	0,6	4	25
5	8	10	12	14	16	18	20	24	28	32	36	40	45	50	-	-	1,7	0,75	5	10
6	10	12	14	16	18	20	24	28	32	36	40	45	50	55	60	-	2,1	0,9	6	10
8	12	14	16	18	20	24	28	32	36	40	45	50	55	60	70	80	2,6	1,2	8	10
10	16	20	24	28	32	36	40	45	50	55	60	70	80	90	100	-	3	1,5	10	5
12	16	20	24	28	32	36	40	45	50	55	60	70	80	90	100	120	3,8	1,8	12	5
14	32	36	40	50	60	80	-	-	-	-	-	-	-	-	-	-	3,8	2	16	1
16	40	50	60	70	80	-	-	-	-	-	-	-	-	-	-	-	4,7	2,5	16	1
20	32	36	40	50	60	80	100	-	-	-	-	-	-	-	-	-	6	3	20	1
