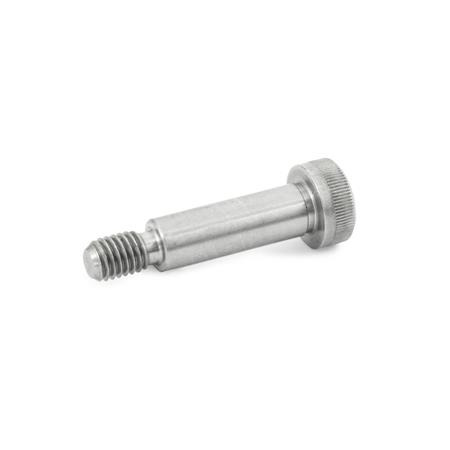

ISO 7379Shoulder ScrewsStainless Steel , with Collar
Product Family Stainless Steel
Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.
Shoulder screws ISO 7379 are cost-saving construction elements for a wide variety of different uses.
The maximum tightening torque is limited by the relatively small bearing points (shoulders) and by the recesses at the transition point from d1 to d2 and d1 to d3.
The ISO standard sheet allows for screws with or without knurled head.
Standard deviation:
no information about the concentricity 2 IT 13 and 2 IT 10
the official ISO standard sheet has the following dimensions for d1 - d2: 6,5-M5 / 13-M10 / 25-M20
the dimensions 4-M3 and 5-M4 are not included in the official ISO standard sheet
Specification
Stainless steel AISI 304NI
Fit dimension d1 ground
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181562
