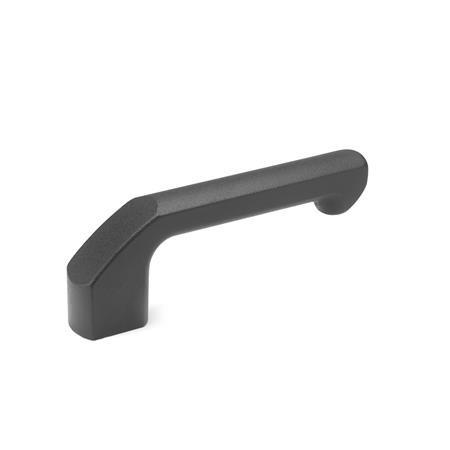

A special characteristic of the cabinet U-handles GN 559 is the thumb rest pad on the front of the leg. At the same time the extended leg offers an open ended version with wide access.
The fastening bores of type C are closed by a cover cap following the handle installation. The cover cap is included in the delivery contents.
Cabinet U-handles GN 559 are known for their high stability. They are fixed by two M8 screws whereby type A offers two alternative hole centers (l2 or l3).
Specification
Handle
Aluminum
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Cover cap for type C
Plastic
Black for SW
Light gray for SR
RoHS
Hide technical drawing
Article options / Table
Type
A
Closed type
B
Open ended type, mounting from the back (threaded blind bore)
C
Open ended type, mounting from the operator's side
The material surcharge is already included in the price.
Weight: 0,242 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83024900
